Arduino MQ6 Gas Sensor Brick

We can build electronics projects just as easy as piling bricks. Arduino and community have made the programming much easier than ever before. How about some elixir on hardware part? Maybe it is not yet convenient to make complex interfaces, but we can at least start from the most commonly used modules.

By using electronic bricks, you may connect Arduino compatible boards easily with various digital, analog and I2C/Uart interfaces. These the breadboard-less firm connection are prepared to extensive modules like poteniometers, sensors, relays, servos...even buttons, just plug and play.

Each terminal module has buckled port with VCC, GND and Output, which has corresponding port on the sensing board, with a plain 2.54mm dual-female cable you may start playing already. Buckled brick cables are like cement for bricks, make the connections easier, secure and more professional looking.

It is very interesting Electronic Brick Module

This module can be used with Arduino Special Sensor Shield.

You can do some simple design about it, it support “plug and play”.

This brick comes with a MQ6 gas sensor, you can adjust the sensitivity with the potentioneter.


1、High sensitivity to Combustible gas in wide range

2、High sensitivity to Propane, Butane and LPG

3、Fast response

4、Wide detection range

5、Stable performance、long life、low cost

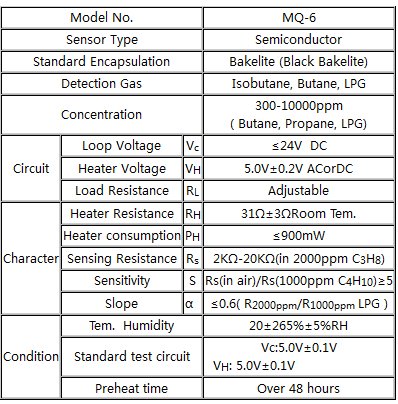

6、Simple drive circuitTechnical Data :




Application :

1)  Domestic gas leakage detector

2)  Industrial Combustible gas detector

3)  Portable gas detector
